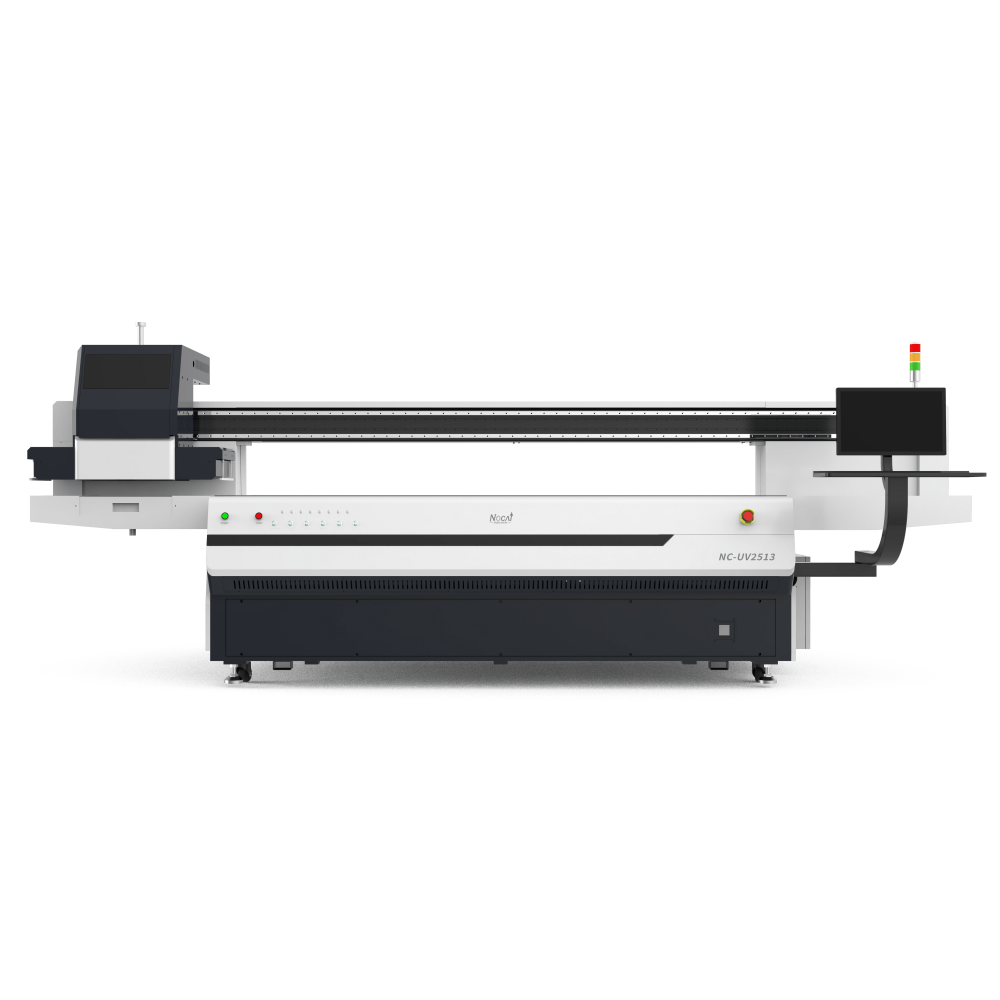

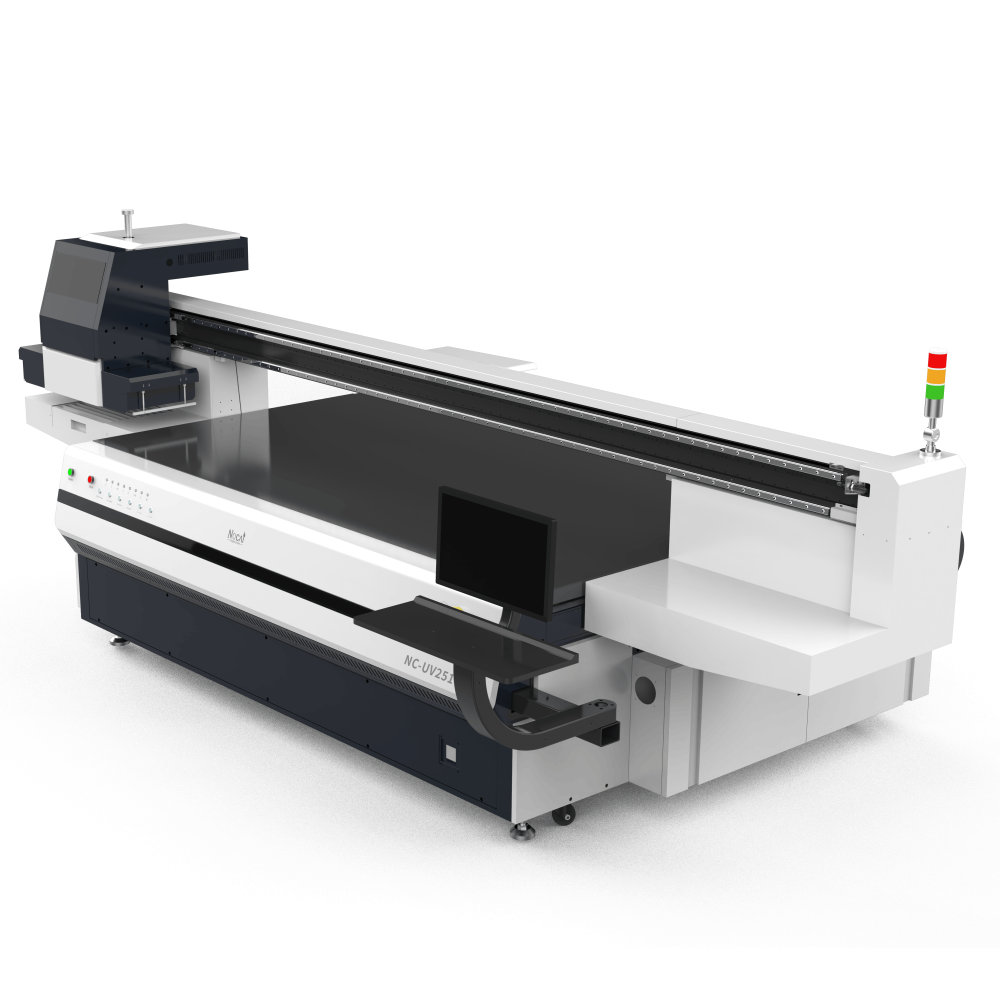

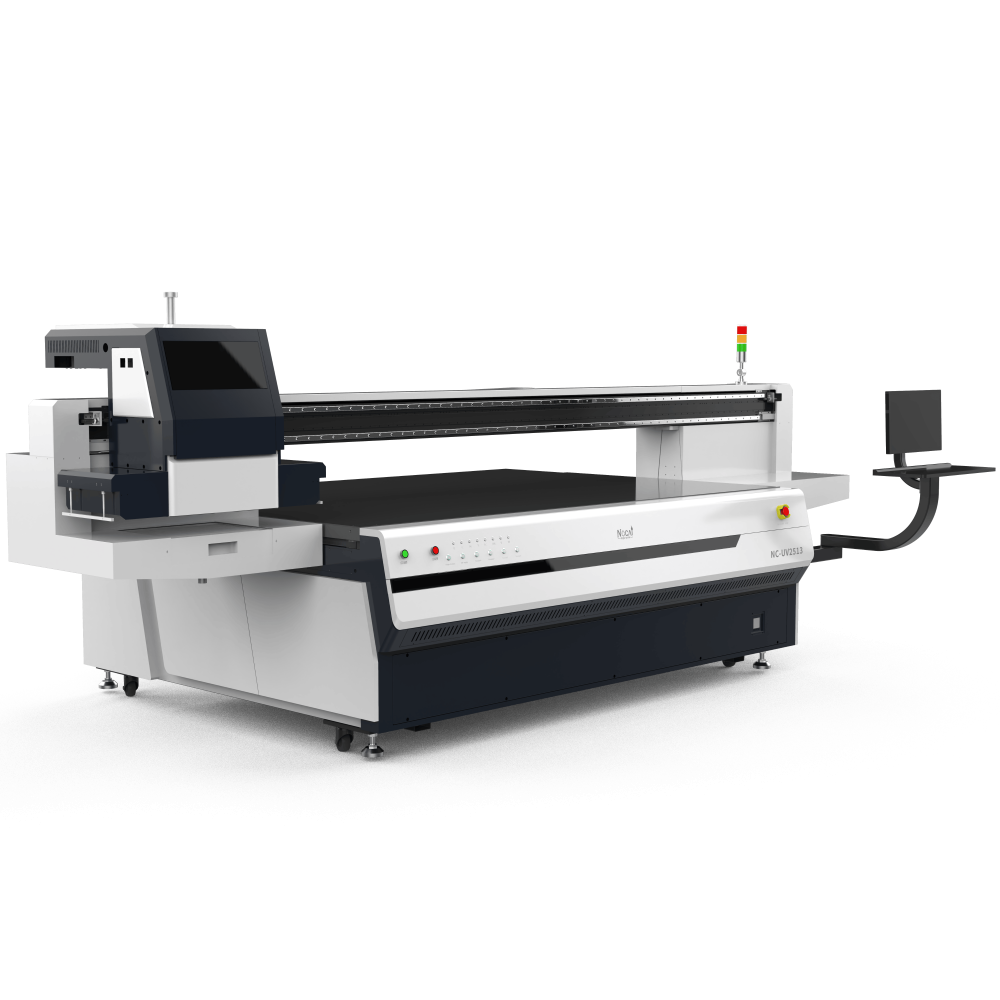

250x130 Industrial UV Printer with Camera – NC-UV2513-III

250x130 UV Printer with Camera – NC-UV2513-IISmart vision, industrial precision, and high productivity with magnetic liner motors.

The NC-UV2513-II combines the latest digital printing technology, an intelligent optical centering system, and magnetic liner motors , ensuring exceptional accuracy and high stability , making it the ideal choice for high-quality professional printing .

🔹 Exceptional features:

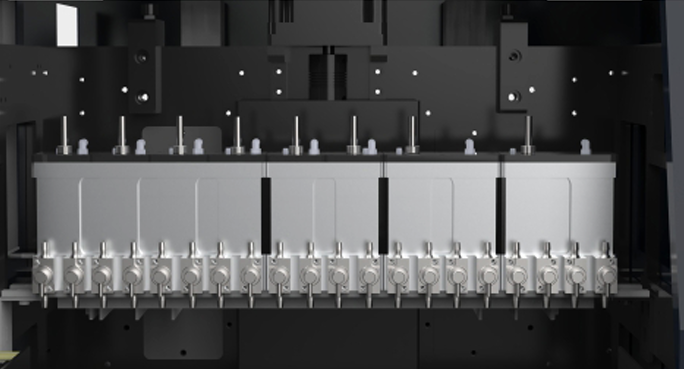

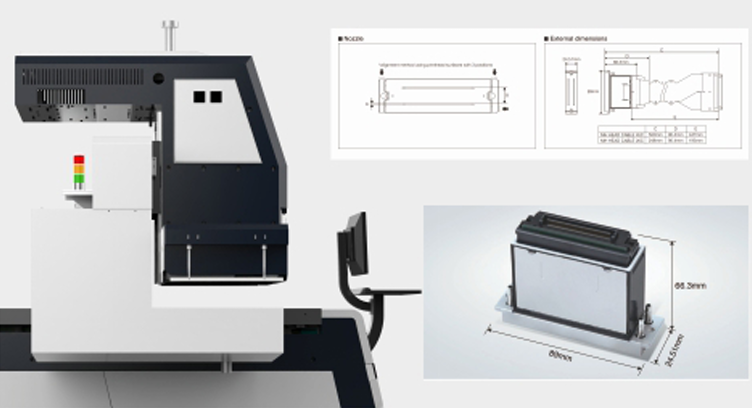

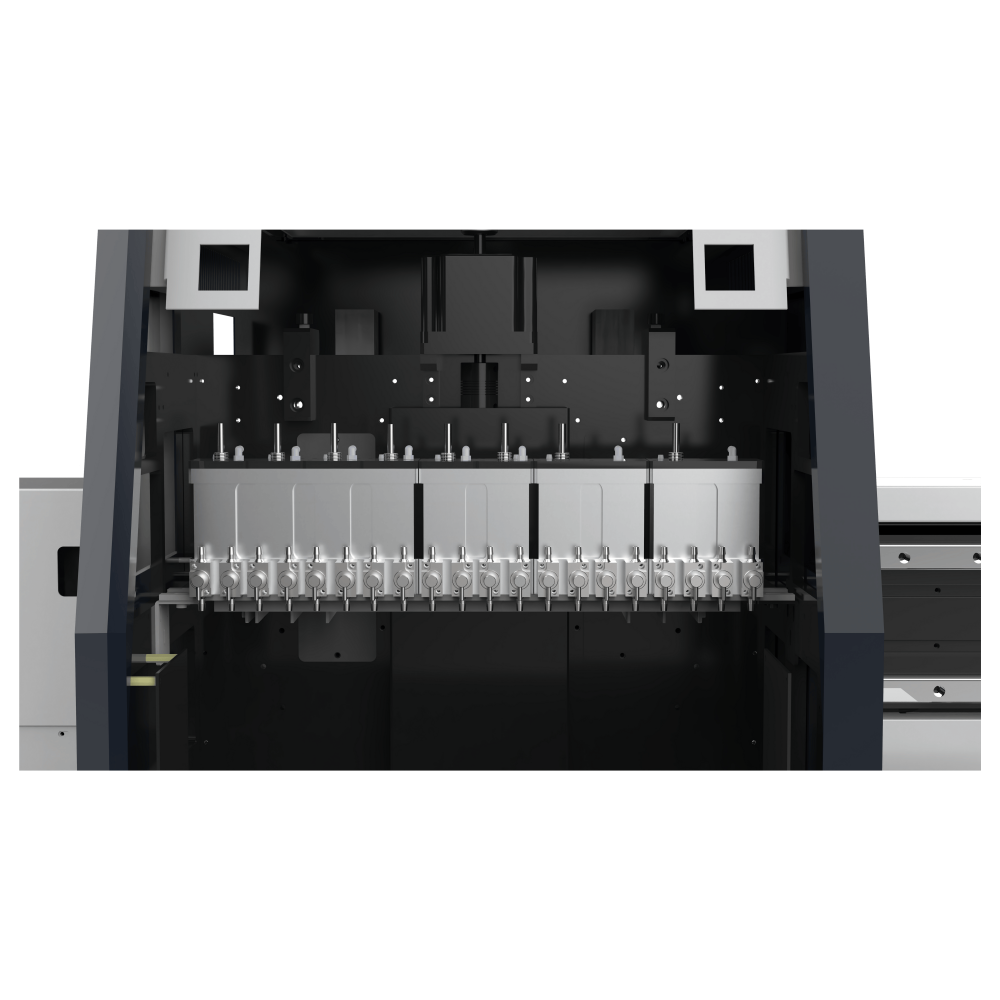

✔ Equipped with 5 Japanese Ricoh G6 industrial print heads , providing resolution up to 2400dpi .

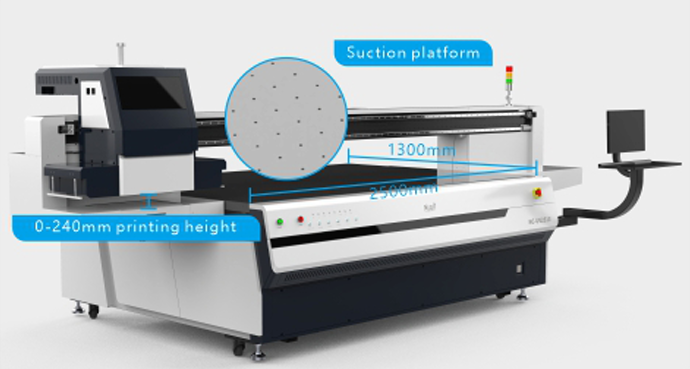

• Printing height: 0-240mm, allows printing on materials with different thicknesses.

• Drive system: Magnetic liner motors to ensure the highest level of accuracy and stability during printing.

✔ Reverse pressure head cleaning system with smart warnings to ensure continuous printing without clogging.

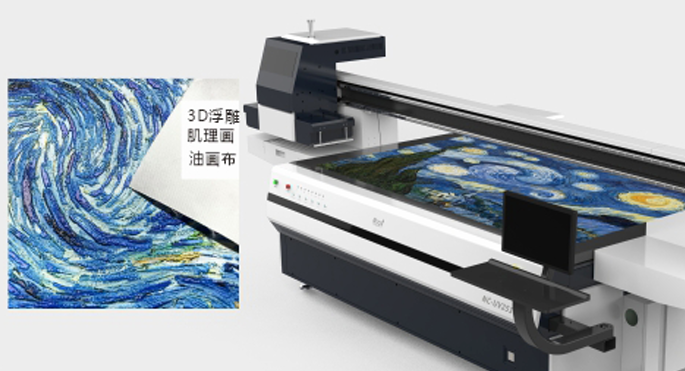

✔ Freedom in color combinations and various effects. White and varnish can be applied in a single layer, with precise control over the varnish print area without the need for manual application, enhancing production efficiency. Color printing with white also gives the design a more precise, three-dimensional appearance, increasing added value and competitiveness.

✔ Print on all materials to meet the needs of various industries. The printer supports printing on a wide range of materials such as glass, wood, PVC, foam board, metal, ceramics, and more, making it ideal for use in the fields of advertising, packaging, home decoration, and 3C digital electronics .

✔ CMYK + LC + LM + W + V colors to support color printing, white, and varnish with 3D effects.

✔ Smart camera optical centering technology to automatically locate the print position with high accuracy without the need for frames.

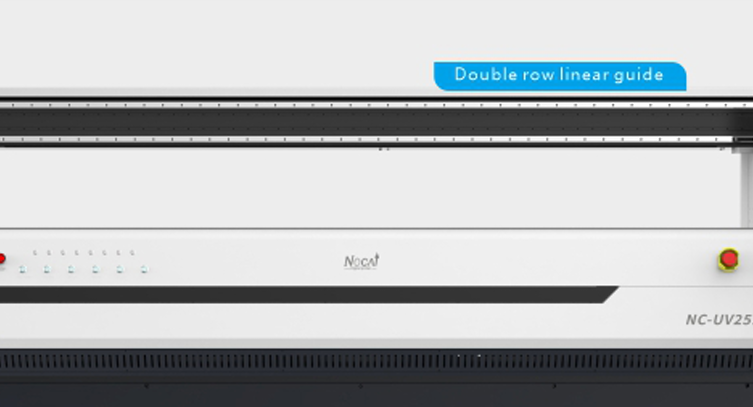

✔ Liner Motor magnetic motors are the world's most precise , ensuring smooth and precise head movement without loss of quality.

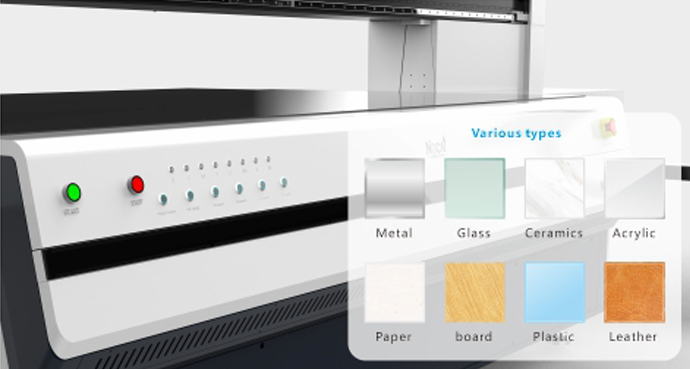

✔ Print on all materials such as glass, acrylic, metal, plastic, ceramic, wood, PVC, foam board, leather, etc.

✔ Precise ink flow and droplet size control system (5-15PL) to ensure smooth color transitions.

✔ UV LED lamps last up to 30,000 operating hours , energy saving, and provide instant print drying.

✔ Print speed up to 32.8 m²/h with perfect stability.

✔ Aluminum honeycomb design air suction platform to ensure the stability of the printed material and prevent distortions.

🔹 Technical specifications:

• Print heads: 2-8 Ricoh G6 heads (optional as needed).
• Print resolution: up to 2400dpi , supports 5-15PL variable ink droplet printing.
• Printing size: 2500×1300mm ±2mm , suitable for a wide range of industrial applications.
• Print colors: CMYK+LC+LM+W+V with varnish and special effects support.
• Printing mode: one-way or two-way , depending on accuracy and speed requirements.
• Printing speed: Standard production mode: 32.8㎡/h
• Normal production mode: 24.1㎡/h
• High resolution mode: 16㎡/h
• Printing program: RIIN/Photoprint for advanced color management and control.
• Supported file types: Tiff, Jpg to ensure wide compatibility with different designs.
• Connection Method: Gigabit Ethernet cable for fast and stable data transfer.
• Printer dimensions: 4255×2010×1580mm .
• Net weight: 1300KG , ensuring high stability during operation.
• Power consumption: 6.8KW/AC220V/50Hz , efficient operation with strong performance.
• Ideal operating environment: Temperature: 18-30°C
• Humidity: 30%-70% (non-condensing)
• Work environment requirements: clean, low dust, well ventilated, and low lighting

🔹 Advanced design and smart operating interface:

✔ Automatic head cleaning system reduces clogging problems and ensures continuous printing.

✔ Smart ink low warning system to alert the user when refilling is needed.

✔ Robust industrial design with treated metal frame, ensures complete stability during fast operation.

✔ Magnetic liner motors provide unparalleled precision and stability in large format printing.

✔ Ideal for printing advertising products, signs, packaging, 3D designs, and industrial materials , making it the perfect choice for mass production and professional printing.

💡 The NC-UV2513-II delivers exceptional print quality, precise visuals, and high productivity, with unprecedented accuracy thanks to its magnetic liner motors.

🖨️ Integrated printing, amazing accuracy, and professional performance in one device. 🚀
