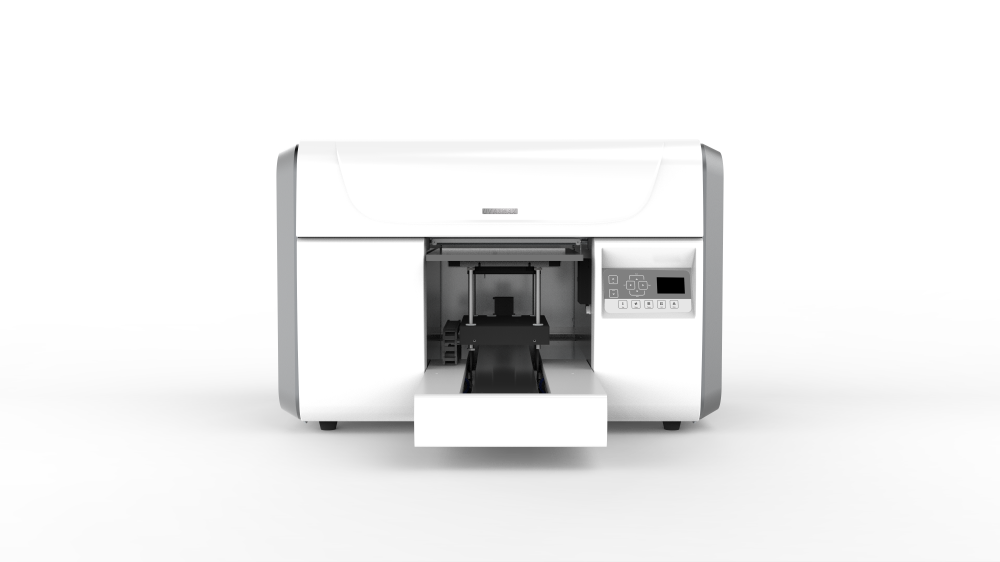

UV printer for hard surfaces and various materials – NC-UVA3MAX
Compact design, high-resolution printing, and multiple capabilities in one device.
The NC-UVA3MAX features a compact size and high performance, making it ideal for printing in offices, stores, exhibitions, and homes . It supports printing on flat, cylindrical, and roll materials , offering endless customization possibilities.
🔹 Exceptional features:
✔ Japanese Epson I3200-U1HD print head with resolution up to 1200dpi , supports full color, white, and varnish printing.
✔ Small and compact design does not take up much space, making it ideal for shops, offices, and quick customization jobs.

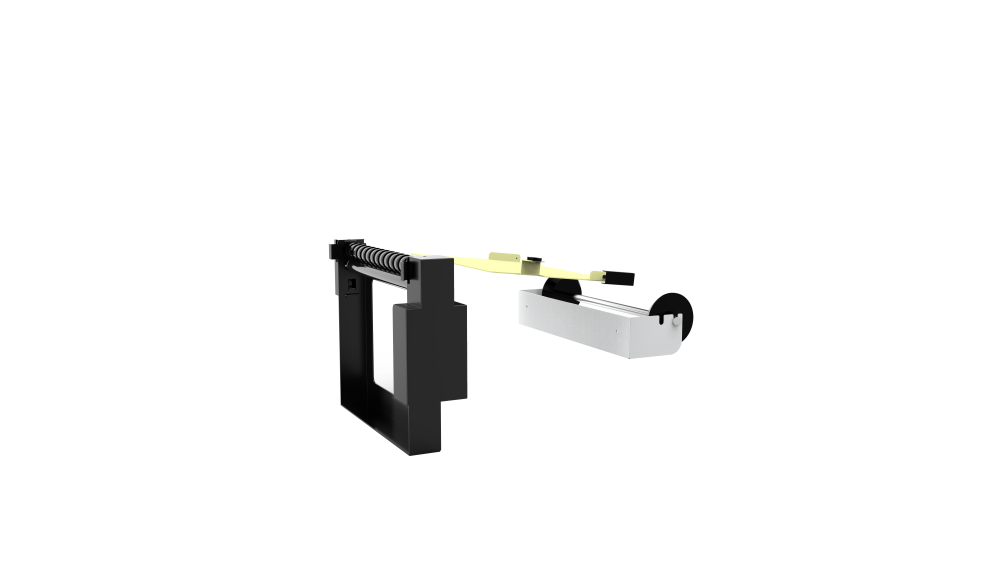

✔ Versatile printing system supports flatbed, roll, and cylinder printing , increasing flexibility of use.
✔ Aluminum air suction platform ensures material stability during printing for perfect results.

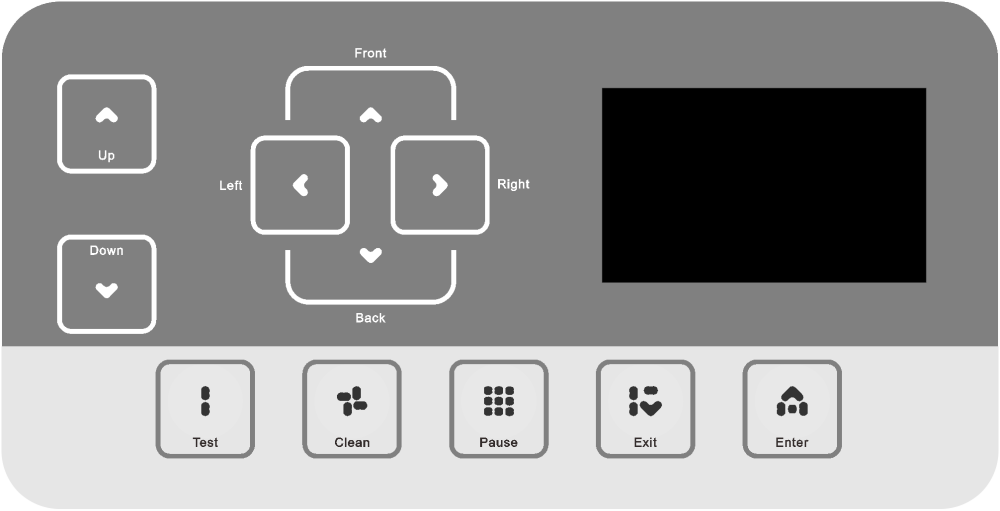

✔ Smart control panel supports automatic maintenance during standby mode, making daily maintenance simple and easy.
✔ Ability to print on materials up to 90mm thick without restrictions on the type of material.
✔ Smart ink filling system prevents leakage and incorrect filling, with automatic ink circulation system and smart alert when the ink level is low .
✔ Air-cooled UV lamp automatically adjusts power, allowing for instant ink drying and improved print quality.
✔ Light-proof and dust-proof design to keep the printing environment clean and protect the printer's internal components.
🔹 Advanced technical specifications:
- Printhead: 1× Epson I3200-U1HD for professional resolution and color.
- Print size: 297×420mm , suitable for most diverse design and printing needs.
- Printing height: 0-90mm to support printing on materials with different thicknesses.
- Print mode:
- CMYK+W+V for integrated color, white, and varnish printing. (Option 1)
- CMYKLcLm＋W for advanced color accuracy with white printing. (Option 2)
- CMYKLcLmLkLlk for professional printing with extended colors. (Option 3)
- Print Resolution: 960×1200dpi - 960×960dpi for clear and crisp details.
- Printing speed: 0.28-3m² per hour , making it suitable for medium production and quick customization.
- Printer dimensions: 1000×902×592mm , compact design fits in small spaces.
- Net weight: 78KG , making it easy to transport and use in multiple places.
- Total packaging weight: 110KG , with a design that keeps it easy to transport.
- Printing software: Future RIP for advanced color and design processing.
- Supported file types: Tiff, Jpg, Eps, Pdf to ensure wide compatibility with various designs.
- Connection method: Network cable to ensure stable data transmission.
- Power consumption: 140W for high operational efficiency.
- Ideal working environment: 20-28°C temperature and 35-65% humidity to maintain optimal print quality.
- Ink Types: Eco-friendly UV ink for clean and sustainable printing.
🔹 Advanced design and smart operating interface:
✔ Intelligent operating system provides automatic maintenance during standby mode to reduce the need for manual maintenance.
✔ Small size with powerful performance , making it ideal for small and medium projects and quick customization work.
✔ Ink low warning system ensures continuous operation without interruption.
✔ Dust and light resistant design maintains stable performance and print quality.
✔ Ideal for printing on phone cases, promotional products, billboards, and more , offering limitless customization possibilities.
💡 The NC-UVA3MAX delivers advanced printing with high quality and ease of operation, making it the ideal choice for businesses and creatives.
🖨️ High-resolution digital printing with small size and great capabilities.
